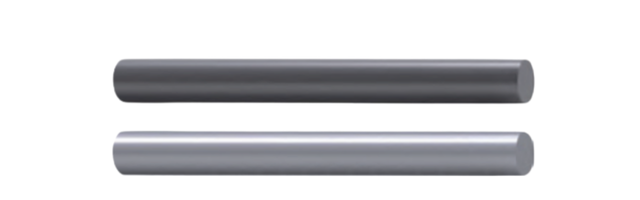

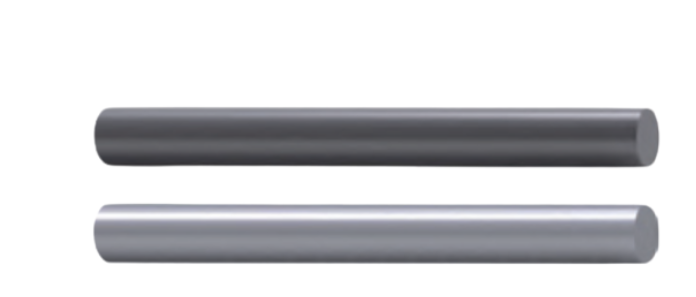

Rods Without Coolant Channel, Unground – Metric

TypeDiameter (mm)Tol. D(mm）Length (mm)Tol. L (mm）
Ø0.2*3300.20/+0.23300/+3.0
Ø0.5*3300.50/+0.23300/+3.0
Ø0.7*3300.70/+0.23300/+3.0
Ø1*33010/+0.23300/+3.0
Ø1.3*3301.30/+0.23300/+3.0
Ø1.5*3301.50/+0.23300/+3.0
Ø1.8*3301.80/+0.23300/+3.0
Ø2*33020/+0.23300/+3.0
Ø2.3*3302.30/+0.23300/+3.0
Ø2.5*3302.50/+0.23300/+3.0
Ø3*3303+0.25/0.453300/+3.0
Ø4*3304+0.25/0.453300/+3.0
Ø5*3305+0.25/0.453300/+3.0
Ø6*3306+0.25/0.453300/+3.0
Ø7*3307+0.25/0.453300/+3.0
Ø8*3308+0.25/0.453300/+3.0
Ø9*3309+0.25/0.453300/+3.0
Ø10*33010+0.3/0.53300/+3.0
Ø11*33011+0.3/0.53300/+3.0
TypeDiameter (mm)Tol. D(mm）Length (mm)Tol. L (mm）
Ø12*33012+0.3/0.53300/+3.0
Ø13*33013+0.3/0.53300/+3.0
Ø14*33014+0.3/0.53300/+3.0
Ø15*33015+0.3/0.53300/+3.0
Ø16*33016+0.3/0.53300/+3.0
Ø17*33017+0.3/0.53300/+3.0
Ø18*33018+0.3/0.53300/+3.0
Ø19*33019+0.3/0.53300/+3.0
Ø20*33020+0.4/0.73300/+3.0
Ø21*33021+0.4/0.73300/+3.0
Ø22*33022+0.4/0.73300/+3.0
Ø23*33023+0.4/0.73300/+3.0
Ø24*33024+0.4/0.73300/+3.0
Ø25*33025+0.4/0.73300/+3.0
Ø26*33026+0.4/0.73300/+3.0
Ø27*33027+0.4/0.73300/+3.0
Ø28*33028+0.4/0.73300/+3.0
Ø29*33029+0.4/0.73300/+3.0
Ø30*33030+0.4/0.73300/+3.0
