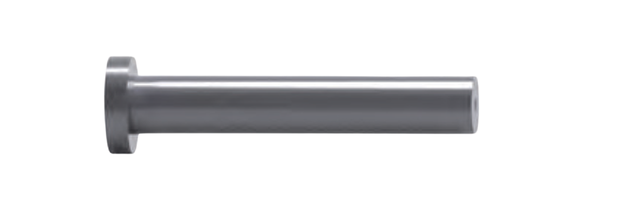

Endmill Blanks With T-Slot

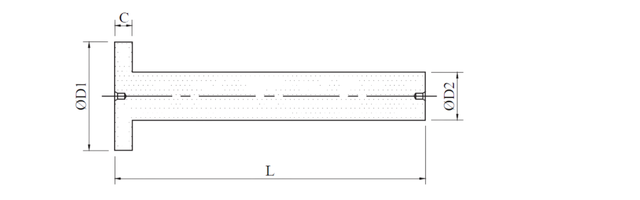

| Type | Diameter D1(mm) | Tol. of Unground | Length (mm) | Tol. L (mm） | Step Length C (mm) | Tol. L (mm） | Diameter D2(mm) | Tol. of Unground | Tol. of Ground |
|---|---|---|---|---|---|---|---|---|---|
| Ø17*104 | 17 | +0/+0.4 | 104 | 0/+2.0 | 4 | ±0.3 | 10 | +0.3/+0.6 | +0/-0.009 |
| Ø21*108 | 21 | +0/+0.4 | 108 | 0/+2.0 | 8 | ±0.3 | 10 | +0.3/+0.6 | +0/-0.009 |
| Ø27*110 | 27 | +0/+0.4 | 110 | 0/+2.0 | 10 | ±0.3 | 12 | +0.3/+0.6 | +0/-0.009 |
| Ø33*154 | 33 | +0/+0.4 | 154 | 0/+2.0 | 4 | ±0.3 | 16 | +0.3/+0.6 | +0/-0.009 |
| Ø37*158 | 37 | +0/+0.4 | 158 | 0/+2.0 | 8 | ±0.3 | 16 | +0.3/+0.6 | +0/-0.009 |
| Ø41.3*160 | 41.3 | +0/+0.4 | 160 | 0/+2.0 | 10 | ±0.3 | 20 | +0.3/+0.6 | +0/-0.009 |
-
Other dimensions available upon request
-
Call us today or email to [email protected] to discuss your requirements. Our personal service begins as soon as we answer the phone or email.
