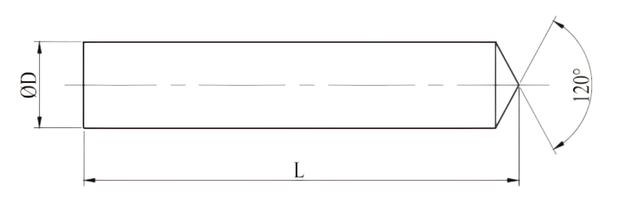

Rods With Tapered End

TypeDiameter (mm)Tol. of UnroundTol. of GroundLength (mm)Tol. L (mm）
Ø5*635+0.3/+0.5h5/h6630/+1.0
Ø5*875+0.3/+0.5h5/h6870/+1.0
Ø6*676+0.3/+0.5h5/h6670/+1.0
Ø6*946+0.3/+0.5h5/h6940/+1.0
Ø7*757+0.3/+0.6h5/h6750/+1.0
Ø7*1107+0.3/+0.6h5/h61100/+1.0
Ø8*808+0.3/+0.6h5/h6800/+1.0
Ø8*1188+0.3/+0.6h5/h61180/+1.0
Ø9*859+0.3/+0.6h5/h6850/+1.0
Ø9*1269+0.3/+0.6h5/h61260/+1.0
Ø10*9010+0.3/+0.6h5/h6900/+1.0
Ø10*13410+0.3/+0.6h5/h61340/+1.0
Ø11*9611+0.3/+0.6h5/h6960/+1.0
Ø11*14311+0.3/+0.6h5/h61430/+1.0
Ø12*10312+0.3/+0.6h5/h61030/+1.0
Ø12*15212+0.3/+0.6h5/h61520/+1.0
Ø13*10313+0.3/+0.7h5/h61030/+1.0
Ø13*15213+0.3/+0.7h5/h61520/+1.0
Ø14*10814+0.3/+0.7h5/h61080/+1.0
Ø14*16114+0.3/+0.7h5/h61610/+1.0
Ø15*11215+0.3/+0.7h5/h61120/+1.0
Ø15*17015+0.3/+0.7h5/h61700/+1.0
Ø16*11616+0.3/+0.7h5/h61160/+1.0
Ø16*17916+0.3/+0.7h5/h61790/+1.0
Ø17*12017+0.3/+0.8h5/h61200/+1.0
Ø17*18517+0.3/+0.8h5/h61850/+1.0
Ø18*12418+0.3/+0.8h5/h61240/+1.0
Ø18*19218+0.3/+0.8h5/h61920/+1.0
Ø19*12819+0.3/+0.8h5/h61280/+1.0
Ø19*19919+0.3/+0.8h5/h61990/+1.0
Ø20*13220+0.3/+0.8h5/h61320/+1.0
Ø20*20620+0.3/+0.8h5/h62060/+1.0
Ø21*13721+0.3/+0.8h5/h61370/+1.0
Ø22*14222+0.3/+0.8h5/h61420/+1.0
Ø23*14723+0.3/+0.8h5/h61470/+1.0
Ø24*15224+0.3/+0.8h5/h61520/+1.0
Ø25*15225+0.3/+0.8h5/h61520/+1.0
Ø26*15726+0.3/+0.8h5/h61570/+1.0
Ø27*16327+0.3/+0.8h5/h61630/+1.0
Ø28*16328+0.3/+0.8h5/h61630/+1.0
Ø29*16929+0.3/+0.8h5/h61690/+1.0
Ø30*16930+0.3/+0.8h5/h61690/+1.0
Ø31*17531+0.3/+0.8h5/h61750/+1.0
Ø32*18132+0.3/+0.8h5/h61810/+1.0
Ø33*18133+0.3/+0.8h5/h61810/+1.0
Ø34*18734+0.3/+0.8h5/h61870/+1.0
Ø35*18735+0.3/+0.8h5/h61870/+1.0
Ø36*19436+0.3/+0.8h5/h61940/+1.0
Ø37*19437+0.3/+0.8h5/h61940/+1.0
Ø38*20138+0.3/+0.8h5/h62010/+1.0
Ø39*20139+0.3/+0.8h5/h62010/+1.0
Ø40*20140+0.3/+0.8h5/h62010/+1.0

  • Other dimensions available upon request

  • Call us today or email to [email protected] to discuss your requirements. Our personal service begins as soon as we answer the phone or email.
