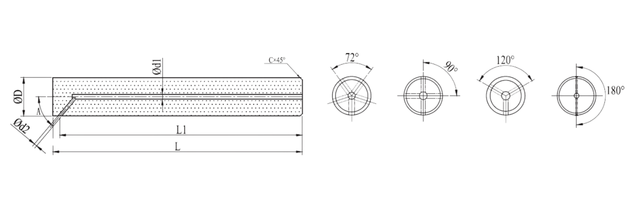

Milling Cutter Blanks With Lateral Exit/Axial Coolant Channels, Ground
| Type | Diameter (mm) | Tol. of Ground | Length (mm) | Tol. L (mm） | Inner Diameter (Ød1) | Tol.d1 (mm) | L1(mm) | Tol.L1 (mm) | Diameter (Ød2) | Tol. Ød2 (mm) | Chamfer C | Tol. C (mm） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ø6*58 | 6 | h5/h6 | 58 | 0/+1.0 | 1.75 | 0/+0.3 | 55 | ±0.3 | 1 | ±0.15 | 0.5 | ±0.1 |
| Ø6*65 | 6 | h5/h6 | 65 | 0/+1.0 | 1.75 | 0/+0.3 | 62 | ±0.3 | 1 | ±0.15 | 0.5 | ±0.1 |
| Ø8*64.2 | 8 | h5/h6 | 64.2 | 0/+1.0 | 1.75 | 0/+0.3 | 60 | ±0.3 | 1.2 | ±0.15 | 1 | ±0.1 |
| Ø8*79 | 8 | h5/h6 | 79 | 0/+1.0 | 1.75 | 0/+0.3 | 74.8 | ±0.3 | 1.2 | ±0.15 | 1 | ±0.1 |
| Ø10*73.2 | 10 | h5/h6 | 73.2 | 0/+1.0 | 2 | 0/+0.3 | 68 | ±0.3 | 1.2 | ±0.15 | 1 | ±0.1 |
| Ø10*101.2 | 10 | h5/h6 | 101.2 | 0/+1.0 | 2 | 0/+0.3 | 96 | ±0.3 | 1.2 | ±0.15 | 1 | ±0.1 |
| Ø12*84.2 | 12 | h5/h6 | 84.2 | 0/+1.0 | 2 | 0/+0.3 | 78 | ±0.3 | 1.5 | ±0.15 | 1 | ±0.1 |
| Ø12*101.1 | 12 | h5/h6 | 101.1 | 0/+1.0 | 2 | 0/+0.3 | 95 | ±0.3 | 1.5 | ±0.15 | 1 | ±0.1 |
| Ø16*93.2 | 16 | h5/h6 | 93.2 | 0/+1.0 | 4 | 0/+0.3 | 85 | ±0.3 | 1.5 | ±0.15 | 1.5 | ±0.1 |
| Ø16*128 | 16 | h5/h6 | 128 | 0/+1.0 | 4 | 0/+0.3 | 119.8 | ±0.3 | 1.5 | ±0.15 | 1.5 | ±0.1 |
| Ø16*133.2 | 16 | h5/h6 | 133.2 | 0/+1.0 | 4 | 0/+0.3 | 125 | ±0.3 | 1.5 | ±0.15 | 1.5 | ±0.1 |
| Ø20*110 | 20 | h5/h6 | 110 | 0/+1.0 | 4 | 0/+0.3 | 99.8 | ±0.3 | 2 | ±0.15 | 1.5 | ±0.1 |
| Ø20*151.5 | 20 | h5/h6 | 151.5 | 0/+1.0 | 4 | 0/+0.3 | 141 | ±0.3 | 2 | ±0.15 | 1.5 | ±0.1 |
| Ø20*161.2 | 20 | h5/h6 | 161.2 | 0/+1.0 | 4 | 0/+0.3 | 151 | ±0.3 | 2 | ±0.15 | 1.5 | ±0.1 |
| Ø25*130 | 25 | h5/h6 | 130 | 0/+1.0 | 4 | 0/+0.3 | 117.5 | ±0.3 | 2 | ±0.15 | 1.5 | ±0.1 |
| Ø25*185 | 25 | h5/h6 | 185 | 0/+1.0 | 4 | 0/+0.3 | 172.5 | ±0.3 | 2 | ±0.15 | 1.5 | ±0.1 |
| Ø25*186 | 25 | h5/h6 | 186 | 0/+1.0 | 4 | 0/+0.3 | 173.5 | ±0.3 | 2 | ±0.15 | 1.5 | ±0.1 |
-
Other dimensions available upon request
-
