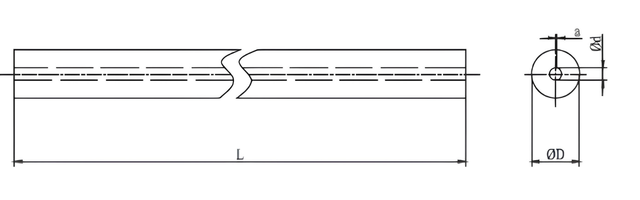

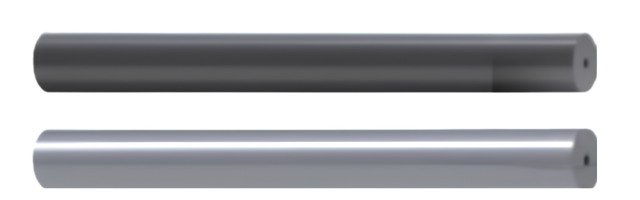

Rods With 1 Central Coolant Channel

TypeDiameter (mm)Tol. of UngroundTol. of GroundLength (mm)Tol. L (mm)Inner Diameter
(Ød)		Tol. Ød
(mm)
Ø3*3303+0.3,+0.5h5/h63300/+1.00.5±0.1
Ø4*3304+0.3,+0.5h5/h63300/+5.00.8±0.1
Ø5*3305+0.3,+0.5h5/h63300/+5.00.8±0.1
Ø6*3306+0.3,+0.5h5/h63300/+5.01±0.15
Ø7*3307+0.3,+0.6h5/h63300/+5.01±0.15
Ø8*3308+0.3,+0.6h5/h63300/+5.01±0.15
Ø9*3309+0.3,+0.6h5/h63300/+5.01.4±0.15
Ø10*33010+0.3,+0.6h5/h63300/+5.01.4±0.15
Ø11*33011+0.3,+0.6h5/h63300/+5.01.4±0.15
Ø12*33012+0.3,+0.6h5/h63300/+5.01.75±0.15
Ø13*33013+0.3,+0.7h5/h63300/+5.01.75±0.15
Ø14*33014+0.3,+0.7h5/h63300/+5.01.75±0.15
Ø15*33015+0.3,+0.7h5/h63300/+5.02±0.2
Ø16*33016+0.3,+0.7h5/h63300/+5.02±0.2
Ø17*33017+0.3,+0.8h5/h63300/+5.02±0.2
Ø18*33018+0.3,+0.8h5/h63300/+5.02±0.2
Ø18*33018+0.3,+0.8h5/h63300/+5.02±0.2
Ø19*33019+0.3,+0.8h5/h63300/+5.02±0.2
Ø20*33020+0.3,+0.8h5/h63300/+5.02.5±0.25
Ø20*33020+0.3,+0.8h5/h63300/+5.02.5±0.25
Ø21*33021+0.3,+0.8h5/h63300/+5.02.5±0.25
Ø22*33022+0.3,+0.8h5/h63300/+5.02.5±0.25
Ø23*33023+0.3,+0.8h5/h63300/+5.02.5±0.25
Ø24*33024+0.3,+0.8h5/h63300/+5.03±0.25
Ø25*33025+0.3,+0.8h5/h63300/+5.03±0.25
Ø26*33026+0.3,+0.8h5/h63300/+5.03±0.25
Ø27*33027+0.3,+0.8h5/h63300/+5.03±0.25
Ø28*33028+0.3,+0.8h5/h63300/+5.03±0.25
Ø29*33029+0.3,+0.8h5/h63300/+5.03±0.25
Ø30*33030+0.3,+0.8h5/h63300/+5.03±0.25

  • Other dimensions available upon request
