Project Description

Description

Based on many years’ research of material, our metallurgy specialists have successfully developed super-fine tungsten carbide powder down to 70 manometer. By using high quality raw materials, we have developed cemented carbide with both high wear resistance and high toughness features, such as MC6U,MC8U and MC12U Which can significantly improve the performance.



Solid Carbide End Mill with 2/4/6/8 FlutesSolid Carbide Long Neck End Mill with 2/4 FlutesSolid Carbide Cornor Radius End Mill with 2/4 FlutesSolid Carbide Long Neck Cornor Radiu End Mill s-2-4 FlutesSolid Carbide Ball Nose End Mill with 2-3-4 FlutesSolid Carbide Long Neck Ball Nose End Mill with 2 FlutesSolid Carbide Aluminum Alloy End Mill with 2-3-4 FlutesSolid Carbide Rough Wave End Mill with 4 Flutes

Solid Carbide End Mill with 2/4/6/8 Flutes

Solid Carbide Long Neck End Mill with 2/4 Flutes

Solid Carbide Cornor Radius End Mill with 2/4 Flutes

Carbide Long Neck Cornor Radiu End Mills 2/4 Flutes

Solid Carbide Ball Nose End Mill with 2-3-4 Flutes

Solid Carbide Long Neck Ball Nose End Mill with 2 Flutes

Solid Carbide Aluminum Alloy End Mill with 2-3-4 Flutes

Solid Carbide Rough Wave End Mill with 4 Flutes

Features

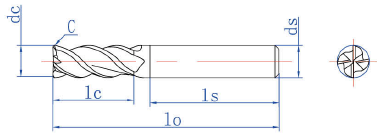

end mill drawing

1. All dimension is fixed by our norm and also accept non standard order.

2. Tolerance of dc≤3mm 0/-0.02, dc>3mm 0/-0.03

3. Tolerance of shank h6

4. Cutting edge to center with tip angle

5. Helix angle 35°

6. Dimension of chamfer on the corner C value:

D≤Φ3,C=0.05~0.1;

Φ3<D≤Φ8, C=0.1;

Φ8<D≤Φ12, C=0.15;

Φ12<D≤Φ16, C=0.2

D>Φ16,C=0.3



Technical Parameters

For Processing Parts' HRCHRC 50HRC 55HRC 58HRC 60
Miller Carbide GradeMC10FMC10SMC8UMC12U
Grain Size0.7um0.6um0.4um0.4um
Co(%)0.10.10.080.12
Flexural Strength3320N/MM23400N/MM23700N/MM24000N/MM2
Miller Coating TypesAlTiN TiAINTiSiNNano
Coating Hardness(HV)32002800360042(GPA)
Coating Thickness(UM)2.5-32.5-333
Oxidation Temp(°)90080010001200
Friction Coeffient0.30.30.450.4
Coating ColorBlackVioletCopperBlue

Standard Size

Flute Length (mm)Over length (mm)Shank Diameter (mm)Flutes
2.550Φ42
450Φ42
550Φ42
750Φ42
850Φ42
850Φ42
10/15/2050/75/100Φ42/4
13/18/2850/75/100Φ52/4
15/20/3050/75/100/150Φ62/4
20/25/35/4060/75/100/150Φ82/4
25/40/5075/100/150Φ102/4/6
30/40/5075/100/150Φ122/4/6
30/40/6080/100/150Φ142/4/6
40/60100/150Φ162/4/6/8
40/60100/150Φ182/4/6/8
40/60100/150Φ202/4/6/8

Specifications

Product NameSolid carbide end mills
Other product availablerough wave end mills, ball nose end mills, cornor radius end mill, end mill for Aluminum, end mill for stainless, micro diameter end mills, long neck end mills
MaterialTungsten carbide, hard metal, hard alloy,tungsten steel
Miller GradeMC6U,MC8U,MC12U,MC10F,MC10S
CompositionTungsten carbide – TC: 88%-93.8%, Cobalt – Co: 6.0%-12%, Other: 0.2%
Density14.7-14.9 g/cm3
HardnessHRA91-94
Features,AdvantagesWear resistant, corrosion resistant, impact resistant
Size RangesCutting Diameter D0.5-D30
Flutes Number1/2/3/4/6/8
BrandMiller™
CoatingAlTiN,TiAIN,TiSiN,Nano
Applications (processed material)Structural Steel, Carbon Steel, Alloy Steel, Pre-hardened Steel, Hardened Steel, Stainless Steel, Titanium Alloys, Nickel Alloys, Cast Irons, Aluminum Alloys, Copper Alloys, Plastic, MDF, wood, acrylic..
